Our solution

The target of dispersion is to disperse – distribute – contaminants in the waste paper to a non-visible size. This is an economical method for elimination of impurities in the pulp – and it also develops strength properties in the fibers.

Cellwood is the world leading supplier of dispersing systems. With a vast number of installations it is well proven that the Krima system makes perfect economical sense with a short return of investment. The systems are installed in the majority of recycling mills in the world, with the first deliveries as early as 1973. At present, with more than 500 installations, over 100,000 tons of recycled fibers are processed in a Krima system every day.

  • Savings and improvements can be seen in many areas:
  • Significantly lower furnish costs.
  • Savings on bleaching chemicals.
  • Increased yield.
  • Lower chemical usage for cleaning.
  • Killing of bacteria and spores with high temperatures.
  • Excellent strength development of fibers.
  • Less rejected paper on plant level.
  • Improved brightness with in-line bleaching.
  • Improved overall paper quality.

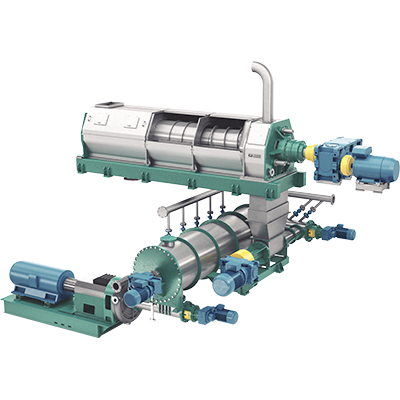

Hot Dispersing System (HDS)

As the most advanced system the HDS produces the best dispersing results. It is also the most flexible system, with optional features such as in-line bleaching. The key feature of hot dispersing is treatment with high temperature at high pulp consistency.

Read more

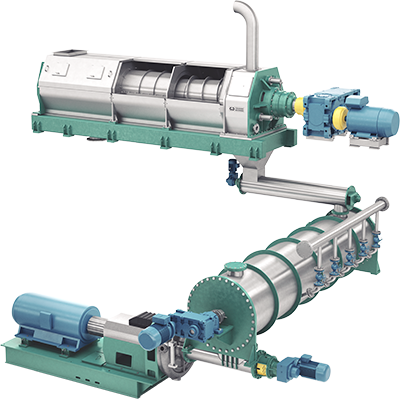

Compact Dispersing System (CDS)

The CDS is the only non-pressurized system. This principle allows for a more compact design: a conveyor can be used to replace both the plug screw and the shredder, and there is no need for pressure vessels or sealings for HC discharge.

Read more

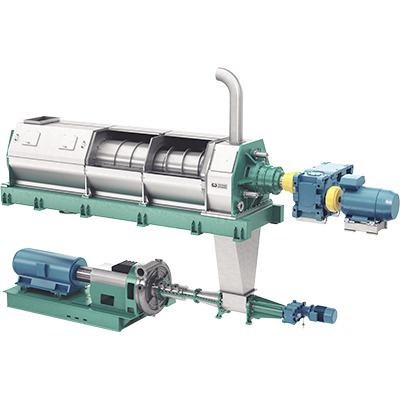

Ultra Compact Dispersing System (UCD)

The UCD system consists of only three machines: screw press, infeeder/steamheater, and disperser. This solution offers the most compact design possible, something that saves both plant space and investment cost.

Read more

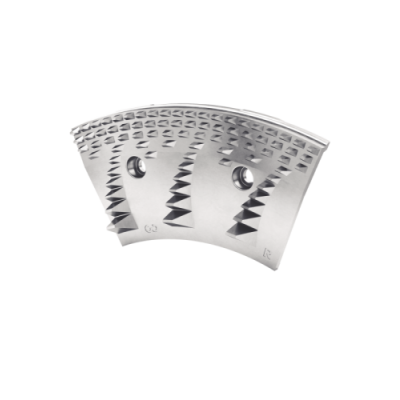

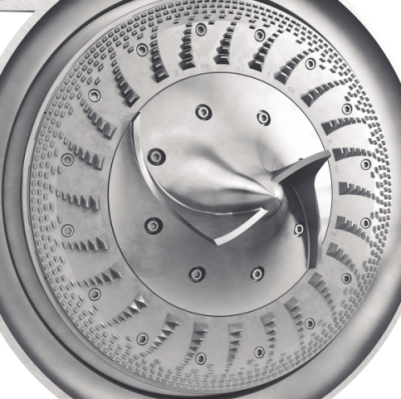

Dispersing discs and wear parts

There is a large variety of dispersing and refining discs available, each developed for treatment of specific paper type

Read more

Our services

dynamicMediaItem.Name

Support throughout the whole product lifecycle

  • Pulp & Paper Pilot plant trials

    Test your material in our pilot plant and analyze machine performance in our lab!

    Download Info
  • Engineering and project based deliveries

    Customized designs for your unique application.

  • Start-up

    Full service on site with your machine delivery.

  • Global support

    We have offices in Sweden, Canada, Germany, China, and agents all over the world.

  • Service visit

    Let us visit your plant and help you improve performance!

    Download Info

Contacts

Are you in need of technical support or wear parts for your machine? Interested in a visit from our staff or a project quotation? Please contact one of our local offices around the world!
