Bioenergy
Reject removal from organic substrate Pre-treatment of household waste with efficient removal of plastics and grit.
Our solution
For the bioenergy industry, Cellwood offers solutions for pre-treatment of organic waste – transforming it into a slurry. The organic material comes from the food and agricultural industries, or from household waste collected by municipalities. After pre-treatment, the substrate can be digested into biogas – which is converted into electricity or used as fuel for vehicles.
Our solution can take care of incoming waste that includes packaging material and other non-organic contaminants – such as plastics, metals, sand and glass. The reject is efficiently removed, resulting in the cleanest substrate on the market. Our concept is based on four different treatment steps: dissolving, screening, separation and disintegration. They can be combined into a full process or installed as stand-alone upgrades in existing plants.
- Advantages with the Cellwood pre-treatment concept:
- Municipal handling of organic household waste can be sorted into plastic bags, as our process removes the plastics efficiently.
- Supermarket waste including high amounts of packaging material is efficiently cleaned.
- Sand and glass is separated from the substrate and prevented from accumulating in tanks and digesters.
- A disintegrated material increases the gas potential.
- As the substrate from our process has a low reject content, the digestate fulfills law requirements for use as agricultural fertilizer.

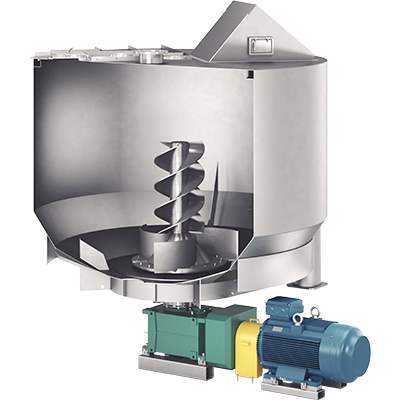

HC-pulper
Dissolving of the waste is made in a pulper. This is the first step in Cellwood’s system concept for pre-treatment of organic waste.
Read more

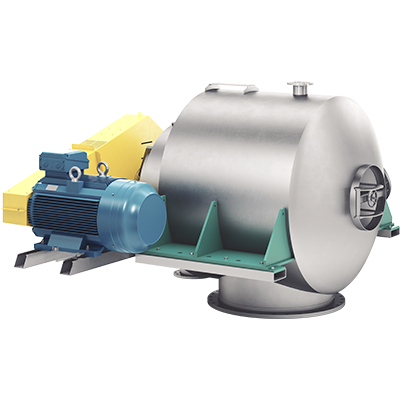

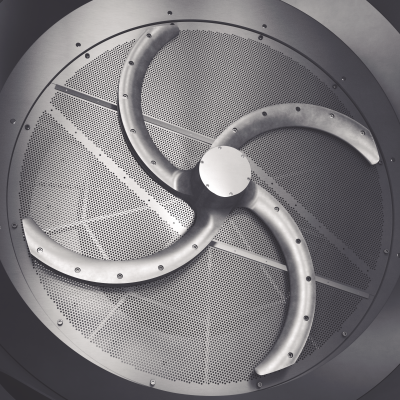

Reject separator
Screening of the substrate is made in a reject separator. This step removes plastics and metals, and can be implemented together with a pulper or with a wet hammer mill.
Read more

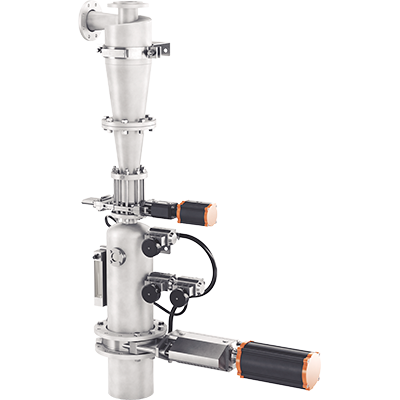

High density cleaner
Removal of grit is made in a high density cleaner. This step separates particles such as sand and glass from the substrate, and prevents sedimentation in digesters and tanks.
Read more

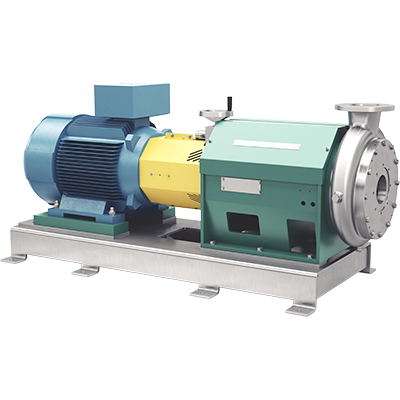

Deflaker
Disintegration is made in a deflaker. The grinding of the organic material enables more gas potential, resulting in an increased biogas yield.
Read moreOur offer
Support throughout the whole product lifecycle
-
Pulp & Paper Pilot plant trials
Test your material in our pilot plant and analyze machine performance in our lab!
Download Info -
Engineering and project based deliveries
Customized designs for your unique application.
-
Start-up
Full service on site with your machine delivery.
-
Global support
We have offices in Sweden, Canada, Germany, China, and agents all over the world.
-
Service visit
Let us visit your plant and help you improve performance!
Download Info
